Overview:
| Model Name | Input voltage /VAC |
Rated output power | Rated output voltage/VDC | Output U/I range | 3D model |
| AWA2P0700 | 90~265 | 2.0KW | 700 | 0~850V/0~3A | AWA2P00602.stp |
| AWA2P0360 | 360 | 0~500V/0~6A | |||
| AWA2P0144 | 144 | 0~190V/0~13A | |||
| AWA2P0108 | 108 | 0~140V/0~18A | |||
| AWA2P0080 | 80 | 0~105V/0~25A | |||
| AWA2P0060 | 60 | 0~80V/0~35A | |||
| AWA2P0032 | 32 | 0~40V/0~60A | AWA2P00242.stp |
Specification:
| Model | |||||||

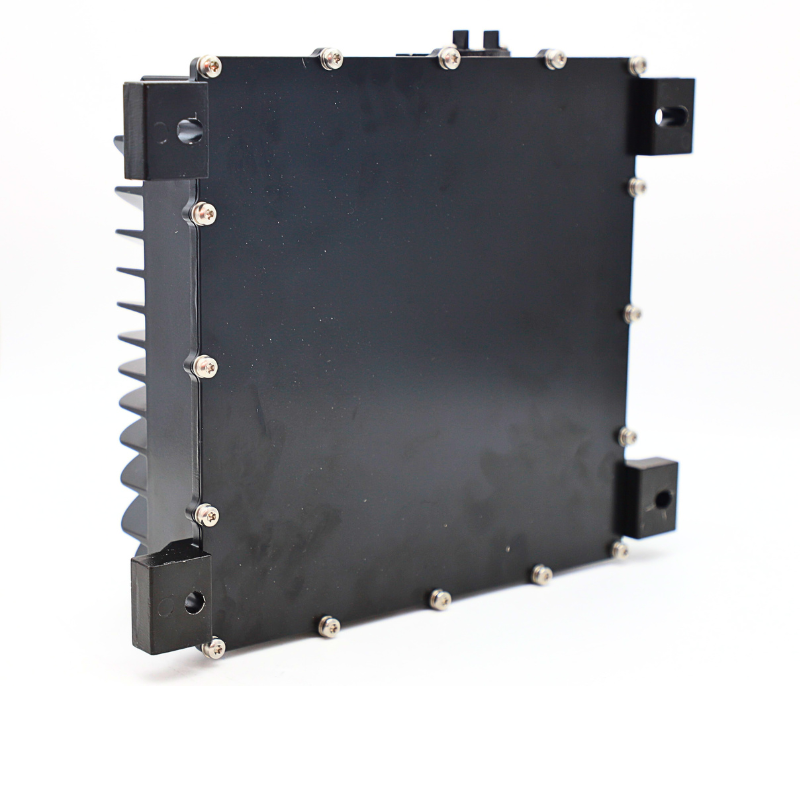

| OBC power supply type | Air-cooled on-board charger | ||||||
| Model and part number | AWA2P0 700 |
AWA2P0 360 |
AWA2P0 144 |
AWA2P0 108 |
AWA2P0 080 |
AWA2P0 060 |
AWA2P0 032 |
| Input Characteristic | |||||||
| Rated Input Voltage | 220VAC | ||||||
| Input Voltage Range | 90～265VAC | ||||||
| Starting Impulse Current | ≤10A | ||||||
| Input power factor | ≥0.99（@220Vin,Pomax） | ||||||
| Output characteristics | |||||||
| Rated output power | 2.0KW | ||||||
| Output voltage range | 700 | 360 | 144 | 108 | 80 | 60 | 32 |
| Output current range | 0~850V | 0~500V | 0~190V | 0~140V | 0~105V | 0~80V | 0~40V |
| Voltage regulation accuracy | ±1% | ±5% | |||||
| Current regulation accuracy | ±0.5A（Io≤10A）&≤±5%（Io>10A） | ||||||
| Ripple coefficient of voltage | ≤1% | ||||||
| Output response time | ≤200mS | ||||||
| Typical efficiency | ≥94% | ≥93% | ≥93% | ≥92% | ≥92% | ≥91% | ≥90% |
| Operating noise | ≤60dB | ||||||
| Protection characteristics | |||||||
| Over- and under-voltage protection | The input over- and under-voltage shutdown can be self-recovering, and the output over-voltage and undervoltage shutdown can be self-recovering. | ||||||
| Output reverse polarity and short-circuit protection | The output is powered off when it is short-circuited or reversed, and it can be self-recovering. | ||||||
| Over-temperature protection | When the heat sink temperature is higher than 75 ° C, it will reduce the output power. And it will disconnect the circuit when the temperature is higher than 95 ° C. It will restore the output when the charging temperature is lower than 85 ° C. | ||||||
| Environmental conditions | |||||||
| Operating temperature | -40℃～+65℃ | ||||||
| Storage temperature | -40～95℃ | ||||||
| Humidity | 5%~95% no condensation | ||||||
| IP rating | IP67 | ||||||
| Cooling function | Air-cooled | ||||||
| Communication features | CAN bus control | ||||||
| Charging function | Receiving the charging command can charge automatically; Without charging command，the charger shall standby | ||||||
| Safety & Reliability | |||||||
| Dielectric strength | Primary/secondary side 2000VAC | Primary/secondary side/Chassis 1500VAC | |||||
| Insulation resistance | Primary-secondary ≥50MΩ | ||||||
| Harmonic currents | Meets the requirements of GPSD | ||||||
| Vibration resistance | After the X, Y, Z three directions sweep vibration test, the parts are not damaged, and the fasteners are not loose | ||||||
| Impact resistance | IEC 60068-2 | ||||||
| Resistance to industrial solvents | Metal parts have a good anti-corrosion layer | ||||||
| Anti-salt spray Performance | IEC 60068-2-11 | ||||||
| Durability | IEC 60068-2 | ||||||
| EMC features | |||||||
| Electromagnetic Immunity | Meet the requirements of EN61000-6-1 | ||||||
| Electromagnetic harassment | Meets the requirements of EN61000-6-3 | ||||||
